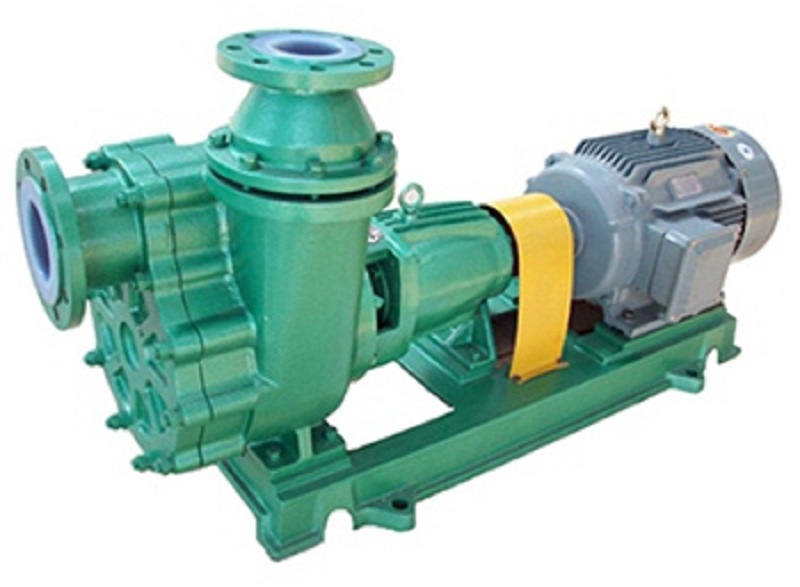

FZB Series Fluorine Plastic Linning self-priming Pump
Patent product, base on IHF centrifugal pump structure, installed the double volute self-priming pump casing on IHF pump, simple structure and for widely usage.
Corrosion and pressure resistance, wet parts are made of corrosion resistant fluoroplastic, with these advantages, FZB pumps available to high corrosive applications. Pump base plate is made of metal; make the pump available to high pressure resistance applications.
Easy for operating
Developed for low sump application, pump installed above the sump or tank, which easy for operating, maintenance and repair.
Min Model No 25FZB 18L pumping flow capacity 3.6 m3/h, 18 meter pump head , equipped with motor power 2.2kw
Max Model No 100FZB 30L Pumping flow capacity 100 m3/h , 30 meter pump head, equipped with motor power 18.5kw
Model No 50FZB 30L
50 Pump inlet diameter are 50mm
FZB single stage end-suction centrifugal pump
30 pump head 30 meter
L Pump Connection by coupling
Pump flow capacity 12 m3/h
Motor 4kw
self-priming Height 3 meter .
Medium
Acids & lyes
Waste water
Chlorine water
Electrolyte
Application
Chemical industry
Pesticide
Acid and alkali making
Papermaking
Acid pickle process
ElectronicsIndustry
