Fluorine Plastic Alloy Anti-Corrosive Magnetic Driven Sealless Pump

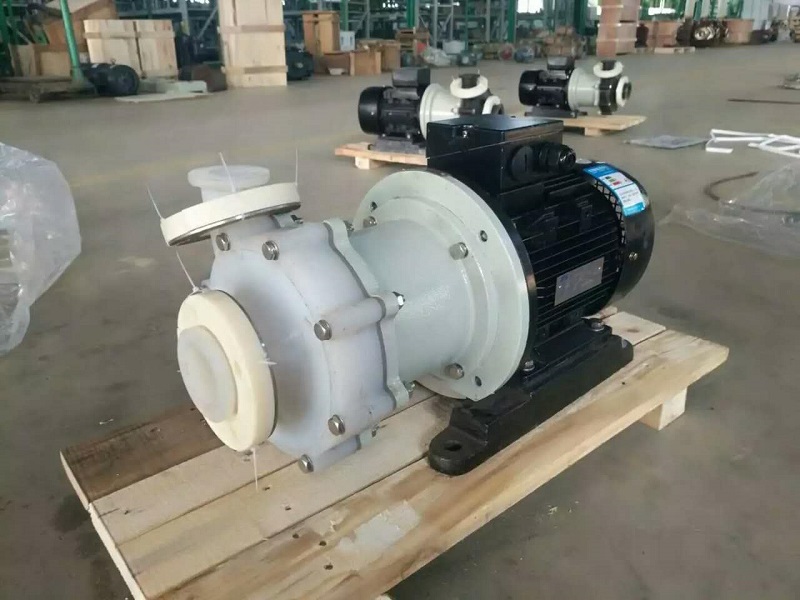

CQB Series Strongly Magnetic (NdFeB) Acid Transfer Pump . ANSI B73.1 Standard Overhung end Suction chemical process Pump. Min flow capacity Leakage-free anti-corrosive FEP (F46) Alloy Pump
Plastic Acid Pump for corrosive fluids
Capacity:Max.200m3/h
Head:Max.50m
Temperature:Max.120Deg.C
Standard:ISO2858
Product Overview:It is the application of modern magnetic theory which use of permanent magnets to achieve non-contact indirect transmission of a chemical process pump . When the external rotor motor drive (that is, outside the magnet) assembly rotates through the magnetic field through the magnetic line of force within the rotor drive isolation kit (that is, inside the magnet) synchronous rotating assembly and the impeller, closed in the static dielectric isolation kit so that no leakage of the purpose of pumping medium,Solve the mechanical transmission pump seal leakage, is sealed, no leaks, a new type of non-polluting industrial pumps. CQB Series magnetic chemical process pump is to prevent running, run, drip, drain phenomenon, the elimination of environmental pollution, and create "no-leak Workshop", "no leak factory", the realization of security, the ideal of civilized production pump.
Pump Materials:
Pump Body :Cast Iron (HT200 / HT250 )
Flow Component: FEP (F46)
Mechanical Seal : sealless instead of magnet set
Bearing : SIC
Alex Sleeve: SIC
Coupling : Cast Iron
Motor : WNM Motor or other China Motor brand
Application Field :
This product is widely used in petrochemical, acid alkali, non-ferrous metal smelting, automotive manufacturing process of pickling, rare earth separation, pesticides, dyes, medicine, paper-making, electroplating, radio and other industries.
Model No:CQB50-32-125F
Flow Capacity : 12.5 m3/h
Pump Head :20 meter.
Motor Power :2.2 kw
Inlet and Outlet Diameter : 50 & 32 mm .
Connection Type : Flange Connection Pumping Solution :Acid and caustic liquid Oxidizer corrosive liquids Difficult-to-seal liquids Sulfuric acid Hydroelectric acid Nitric acid Acid and lye Nitromuriatic acid.
Magnetic Driven Pump Classification :
| Category | Classic Type | Short Bracket Type |
Long Bracket Type |
New Upgrade Type |
| Pump Model | CQB-F | CQB- FD | CQB-FA | CQB-FT |
| Designed Pressure | 1.6 Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa |
| Inner Magnet Materials | Ferrite | NdFeB | NdFeB | NdFeB |
| Out Magnet Materials | NdFeB | NdFeB | NdFeB | NdFeB |
| Connected Type | Directed Connection | Directed Connection | Coupling Connection | Directed Connection |
| Relationship between Impeller and Inner Manget |
Integral Forming | Separate Forming |
Separate Forming |
Integral Forming |
| Option SIC Inserts | No | Yes | Yes | No |
| Pump Model |
Flow (M3/h) | Head (m) | Efficiency (%) | NPSHr (m) | Speed (rpm) | Inlet (mm) | Outlet (mm) | Motor Power(kw) | Pump and motor weight (KG) |
| CQB 32-20-110F | 5.5 | 13 | 35 | 6 | 2900 | 32 | 20 | 0.55 | 18 |
| CQB32-20-160F | 5.5 | 32 | 35 | 5 | 2900 | 32 | 20 | 2.2 | 65 |
| CQB40-25-120F | 6.3 | 15 | 42 | 5 | 2900 | 40 | 25 | 0.75 | 35 |
| CQB40-25-125F | 6.3 | 20 | 41 | 4.5 | 2900 | 40 | 25 | 1.1 | 54 |
| CQB40-25-160F | 6.3 | 32 | 36 | 5.0 | 2900 | 40 | 25 | 2.2/3 | 55 |
| CQB40-25-200F | 6.3 | 50 | 25 | 4.5 | 2900 | 40 | 25 | 4 | 100 |
| CQB 40-40-125F | 6.5 | 17 | 42 | 3.7 | 2900 | 40 | 40 | 1.1 | 40 |
| CQB 50-32-125F | 12.5 |
20 |
42 |
3.5 | 2900 | 50 | 32 | 1.5 | 45 |
| CQB50-32-160F | 12.5 | 32 | 40 | 3.5 | 2900 | 50 | 32 | 4 | 80 |
| CQB50-32-200F | 12.5 | 50 | 32 | 3.5 | 2900 | 50 | 32 | 7.5 | 150 |
If you have any pumping solution parameter, please send an invitation to us
-
